Steel Industry Process-optimized knife solutions

Home > Tech Center > Steel Industry

Giga Steel(1.5GPa) Knives specifically for ultra-high tensile steel (DY-7)

  • heat treatment hardness HRC 62~64 avatar: 1.5GPa High-alloy tool steel optimized for slitting Giga Steel and high-strength steel plates.
  • fine chipping(Micro-Chipping) complete control: Maximizes toughness and wear resistance with fine and uniform carbide structure.

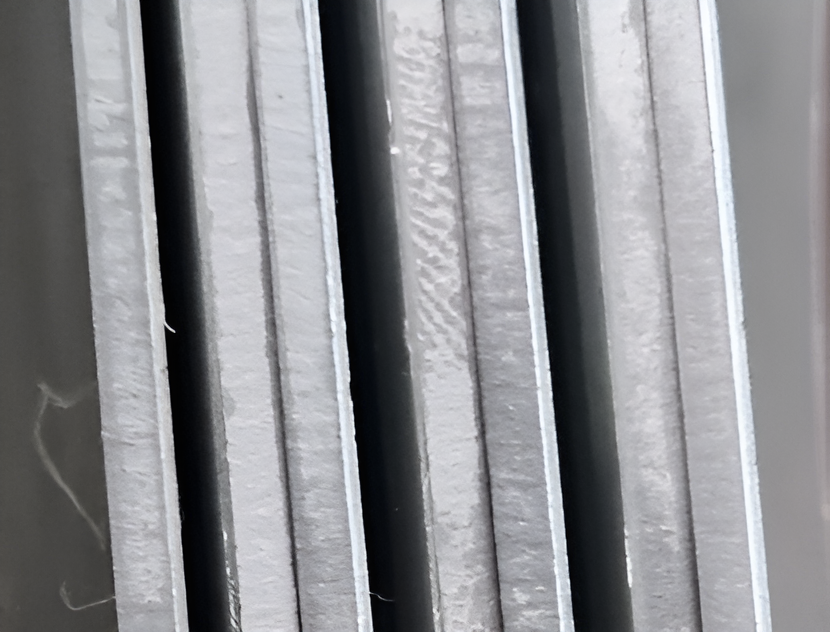

Dongyang Kangup DY-7 Photo of cut surface after work

DY-7 Cut surface after work

Dongyang Kangup DY-7 Close-up photo of the cut surface after work

Close-up photo of cut surface

Dongyang Kangup DY-7 Wear resistance and toughness result graph

Wear resistance and toughness(Toughness) Result Graph

Steel Industry Expected effects when applying the line

  • Maximize facility productivity: Line stoppage due to extended knife replacement cycle(Downtime) minimize
  • Reduce maintenance costs: Improved durability compared to our existing knives
  • Secure ultra-precise quality: Burrs generated during slitting of Giga Steel(Burr)Ensures perfect cutting surface quality by minimizing

Appropriate clearance depending on the type of material to be cut

ingredient
(Material)		 clearance
(Clearance)		 ingredient
(Material)		 clearance
(Clearance)		 ingredient
(Material)		 clearance
(Clearance)
mild steel
(Mild steel)		 6~9%t copper
(Copper)		 6~10%t soft aluminum
(Aluminum soft)		 5~8%t
high strength steel
(High tension steel)		 10~16%t brass
(Brass)		 6~10%t hard aluminum
(Aluminum hard)		 6~10%t
silicon steel
(Silicon steel)		 10~16%t phosphor bronze
(Phosphor bronze)		 6~10%t aluminum alloy
(Aluminum alloy)		 6~10%t
stainless steel
(Stainless steel)		 10~16%t

reference: Appropriate clearance should be selected by referring to the following table. (t=thickness)
