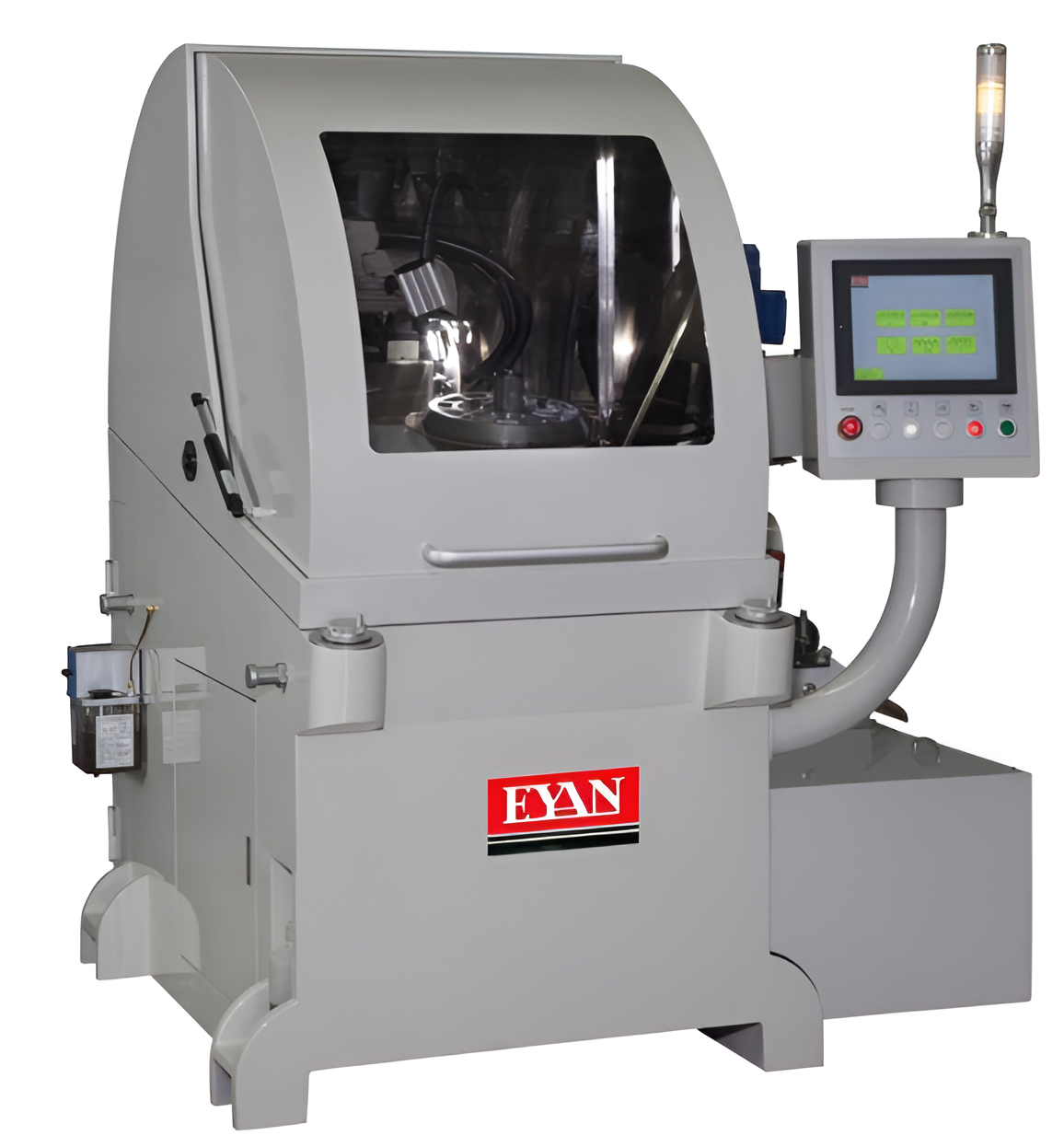

CNC cold saw Grinding Machines (EMA Series)
CNC CIRCULAR SAW BLADE SHARPENING MACHINE
- brand: EYAN Machine Tools / Korea Official Distributor Dongyang Kangup
- Grindable diameter: Ø95 mm ~ Ø650 mm (Varies by model)
- Number of polishing teeth: 10 ~ 998 Teeth
- cutting angle: 0° ~ 30°
- control system: 4axis(X, Z, B, Y) Full servo control and touch screen
4-axis full servo control system that maximizes precision and durability
Saw blade outer diameter, number of teeth, grinding amount, cutting angle, top and bottom chamfer(Chamfer)Top-of-the-line 4-axis that can be set fully automatically CNC cold saw Grinding Machinesno see.
[Baxis / ZAxis dual handwheel design]
worker Zaxis and BBy applying a dual handwheel that moves the axes simultaneously to quickly set the saw blade, grinding efficiency is greatly improved when resharpening old saw teeth..
[SU304 stainless steel pool cover]
All cover plates inside the equipment are permanently rust-free. SU304 Stainless steel material is used to maximize durability and prevent contamination..
[Modular high-precision wheel spindle]
Bullet type with advanced modular structure(Cartridge-type) By adopting a spindle, the entire spindle unit can be easily replaced without a highly specialized technician, providing high maintenance convenience..
[Patented saw blade locking device]
Uniquely patented saw blade lock(Locking) Safer and faster maintenance is possible by applying a brake device for design and disassembly of the grinding wheel..
Supported tooth shapes(Tooth Profile) type
SPECIFICATIONS (Product Specification Table)
| item (Item) | EMA-500 3A | EMA-500 4A | EMA-650 3A | EMA-650 4A |
|---|---|---|---|---|
| polishing range Grinding Range |
Ø95 ~ Ø500 mm (Optional Ø45~Ø120 mm) |
Ø95 ~ Ø500 mm (Optional Ø45~Ø120 mm) |
Ø100 ~ Ø650 mm | Ø100 ~ Ø650 mm |
| Chamfer range Chamfering Range |
- | Ø155 ~ Ø500 mm | - | Ø170 ~ Ø650 mm |
| Number of polishing teeth Number of Teeth |
10 ~ 998 Teeth | |||
| saw blade thickness Sawblade Thickness |
maximum (Max) 8 mm | |||
| cutting angle Cutting Angle |
0° ~ 30° | |||
| polishing speed Grinding Speed |
1 ~ 60 Teeth / Min | |||
| wheel outer diameter Wheel Diameter |
Ø200 mm | |||
| wheel inner diameter Wheel Bore |
Ø32 mm | |||
| wheel thickness Wheel Thickness |
maximum (Max) 8 mm | |||
| wheel motor Wheel Motor |
4.0 kW | |||
| wheel rotation speed Wheel Speed |
2500 ~ 6000 rpm | |||
| X/Z/Baxis motor X/Z/B-axis Motor |
AC servo motor (AC Servo Motor) | |||
| Yaxis motor Y-axis Motor |
- | AC servo motor | - | AC servo motor |
| cooling pump motor Coolant Pump Motor |
1.6 kW | |||
| oil mist recovery machine Oil Mist Recycle |
0.55 kW | |||
| iron powder filter Iron Filter |
25 W | |||
| power consumption Power Require |
9 kW | 10 kW | 9 kW | 10 kW |
| net weight Net Weight |
870 kg | 954 kg | 968 kg | 1002 kg |
| gross weight Gross Weight |
1264 kg | 1342 kg | 1362 kg | 1425 kg |
| packaging size Packing Size |
188 x 173 x 206 cm | 197 x 198 x 225 cm | ||
* Machine specifications and dimensions may change without notice to improve quality..
